T072
T071

t07

支持主板定制设计服务。

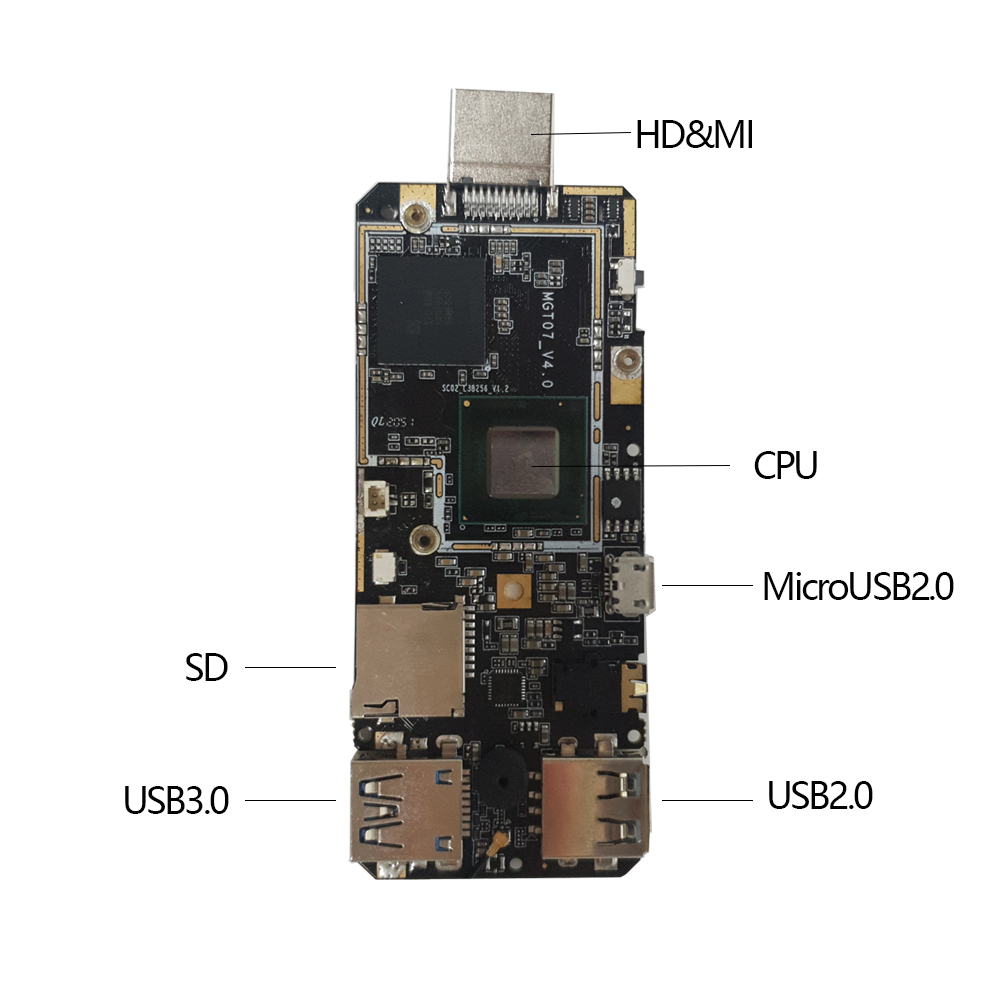

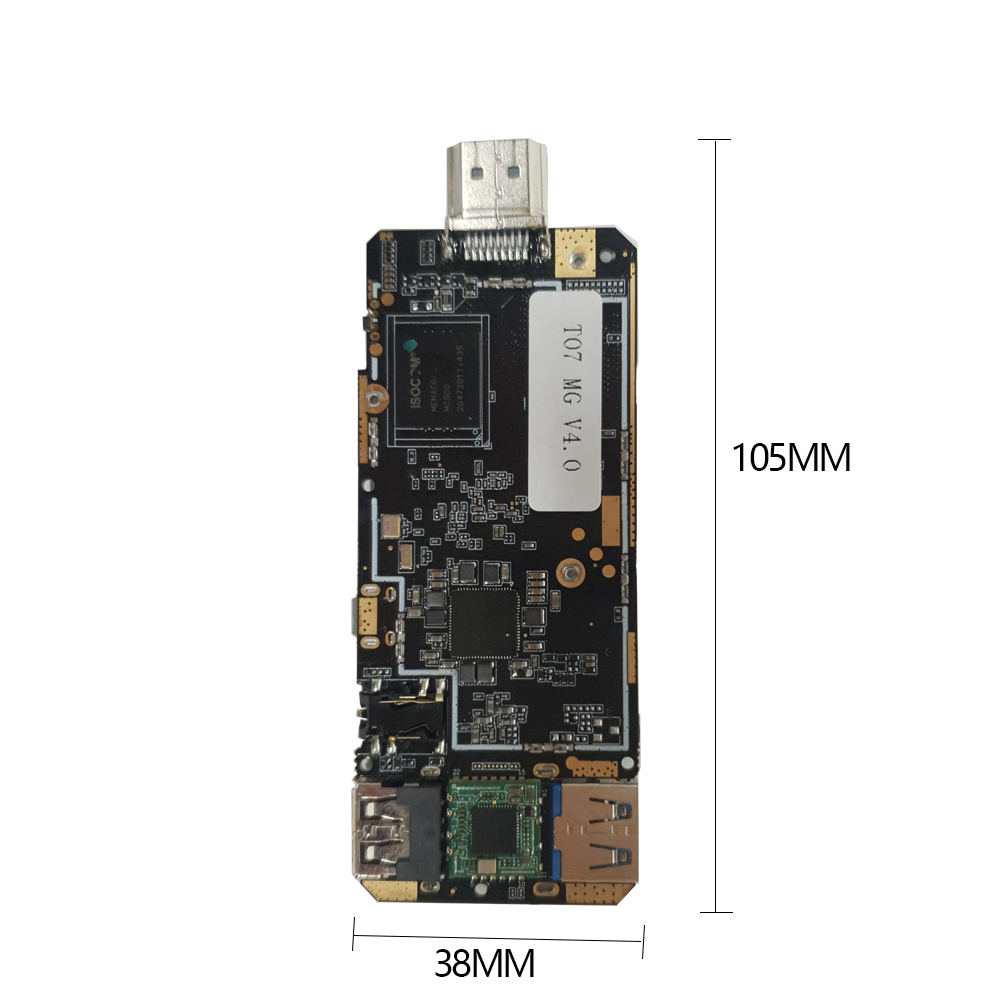

Meegopad-Comput Stick/MEEGOPAD T07
Contact: Elaine  Email:elaine@meegopad.cn     Mobile:0086-15889685436     skype: lichen0000lichen1
Specification www.meegopad.cn
General
Style Ultra-mini PC——Compute Stick
OS Windows 10
CPU/GPU
CPU/GPU Intel Atom Cherry Trail x5-Z8350 CPU Z8500 (14NM) 2MB L2 Cache
CPU Frequency 1.44GHZ
Turbo Frequency 1.84GHZ
Core Quad Core
GPU Intel HD Graphic,12EU Gen8LP 600MHz
Storage
Ram DDR3L 2/4GB 1600
Storage eMMC5.0 32GB
Expand Storage Micro SDTFcard, max 64G. Support external USB-Device
Network Communication
WiFi 802.11b/g/n Wireless
Bluetooth BT4.0
I/O Ports
HDMI 1920*1200 HDMI port
Data 2*USB2.0
Power 1*MicroUSB2.0
Expand Storage Micro SD*1
Audio Headphone out/Mic-in for  iPhone format
Feature Key Power On/Off
Special Function
FAN 3004FANwith fan
Power Adapter
Power Adapter Input 100V-240V 50/60Hz Output 5V 2A
