D116D

If you want to know more about our product,please sent email to us.
General

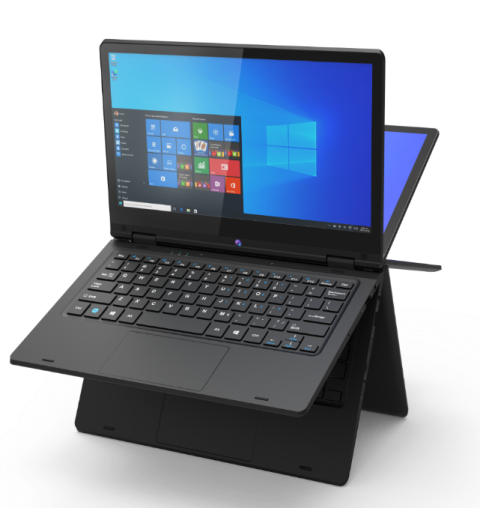

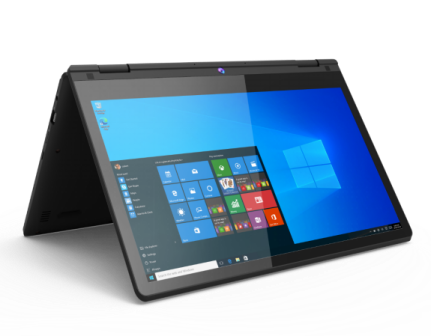

Style 11.6inch 360degree turn over case laptop style with touch screen for mobile phone and hdmi devices
Main Function
1. Connect USB C 3.1 mobile phone through USB C and make mobile phone a PC.
2. Connect all Android mobile phones through USB cable for  Screen (support touch screen,keyboard and mouse pad)  (optional,not standard at quotation).
3. Connect Iphone through USB cable for Mirra screen (support touch screen, keyboard and mouse pad)(optional, not standard at quotation).
4. Wireless connection with phones is optional.
5. Connect Mini PC/Stick PC/Develop Board to HDMI port&USB port, make it a compelete PC.
6. Connect Macbook from USB C port to make 10 a second display.
7. MeeGo Dock D116D can be used as power bank to charge mobile phone.
8. Expand mobile phone storage on laptop Micro SD Card Slot, support Max 256GB.
9. Support adjust brightness, volume level, Audio/Vido play/suspend/back/forward, charing, full charged, etc same as notebook.
Screen
Touch 10point Touch Screen
Display 11.6 inch 1366*768 (1920*1080 optional)
Keyboard
Keyboard full size, backlight optional
Wireless
WIFi Miracast optional
Touch Pad
Touch Pad Mouse track
Battery
7.6V 6300MAH 4pcs 3.7V 2500MAH cell, or 2PCS 3.7V 5000MAH Cell
Spearker
Spearker Built-in stereo speakers 8Ω
Mic
Mic Built in
I/0
DC Power DC power 12V 3A
HDMI*1 HDMI IN
USB C*1  for resver for support all mobile phone
USB  C*1 5V/3A Power& Data &Video and Audio input for mobile phone/stick pc/mini pc/development board
HDMi*1 HDMI*1
USB2.0 A*1 Data transfer,   Maximum power output up to 5V/500mAh
Audio Jack*1  3.5mm stereo mini jack
 Micro SD Cardreader*1  Support up to 256GB
Device supporting
Samsung S8/S8+/s9/S9+and above Supporting DEX desktop function
Huawei MATE10/Mate20/P20& above Supporting desktop function
MACBOOK Supporting all models with Type C
  Supporting all devices with USb3.1 type C port or HDMI port (NOTEBOOK,TABLET MINI PC,MOBILE PHONE, ALL IN ONE, DEVELOPMENT BOARD
Power Spec
Power Adapter PD18W
Phisical Spec
Dimension 277.0*188.6*17.2mm
Weight 0.95KG
Material  Plastic
Color Black,Gary,Siliver,Gold
Working Tempeturate 0-40°C
Storage Tempeturate ~(-20)~70°C
Package
Package 1*D116D, 1* Gift Box, 1*power adapter with cable, 1*USB C 3.1 cable
