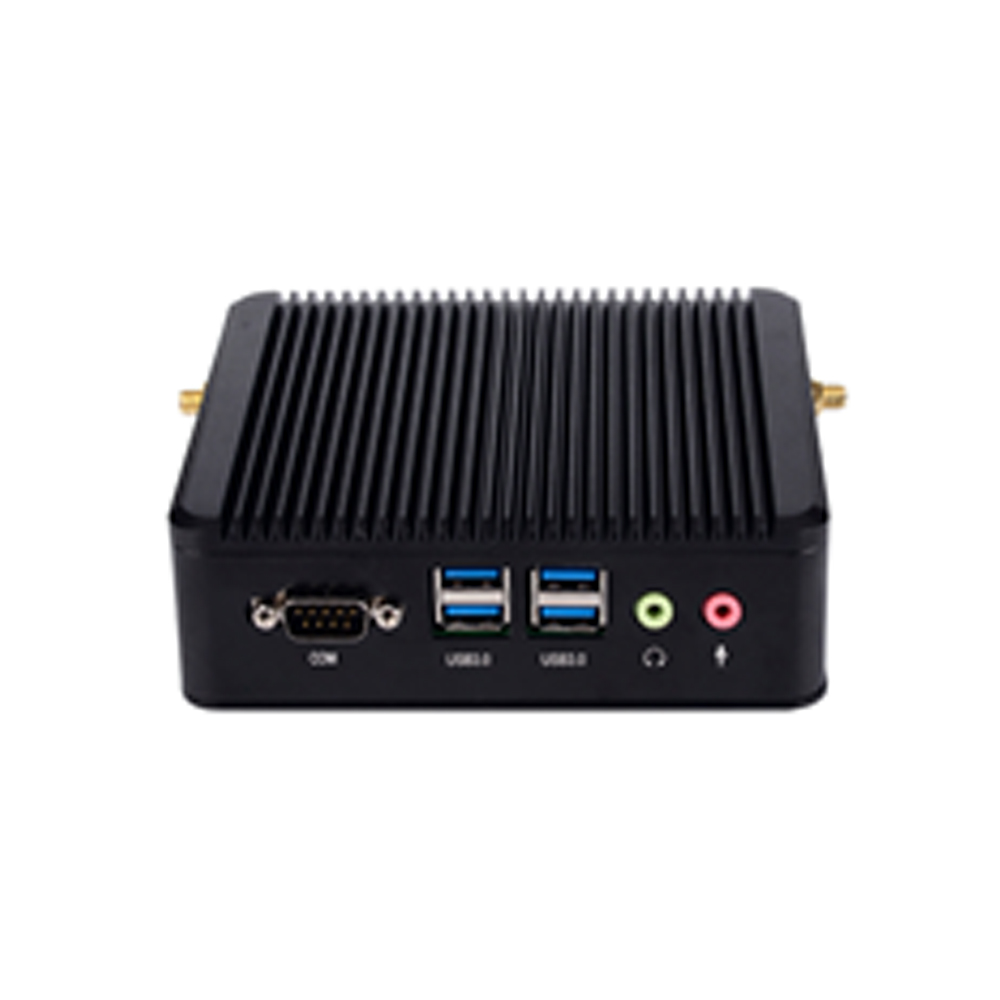

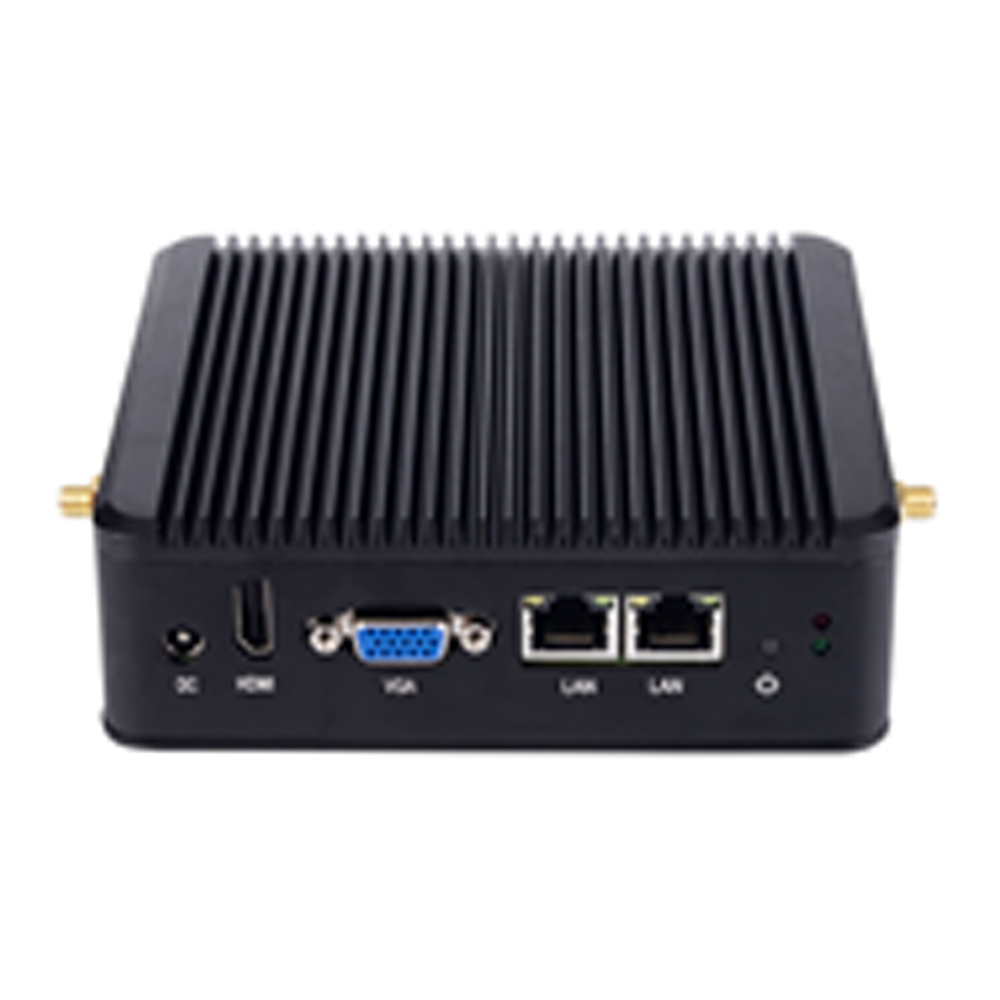

C7B
If you want to know more about our product,please sent email to us.
| General | |
  |
|
| Style | No Fan,No cooling fin,TDP 6W, 12cm*12cm, 3160 Mainboard |
| OS | Win7/Win8/Win10/LINUX/Ubuntu/Android |
| CPU/GPU | |
| Chip | Intel Chip |
| CPU | Intel J3160 Four-thread processor |
| Graphics Card | Intel Core Graphics Card |
| Storage | |
| Hard Disk | MSATA3.0 *1 , 60G,Maximu Support 500G |
| Memory | DDR3 1333/1600,2G, Maximun Support 8GB |
| Network Communication | |
| WiFi | Wifi or 3G/4G |
| Wired LAN | 2*LAN (RTL8111 1000M) |
| I/O Ports | |
| HDMI | 1*HDMI Port |
| Data | 4*USB3.0/ 3*USB2.0(inside) |
| LAN | 2*LAN Port |
| VGA | 1*VGA Port |
| Audio | 1*AUDIO; 1*MIC |
| Option | 1*COM Port(RJ232/485 Optional) |
| Feature Key | PC Power On/Off，Power Indicator |
| Option | 1*Mini-PCIE Port |
| Working condition | |
| Power | DC9-24V |
| Adapter | DC12V 5A |
| TEMP | -20℃--50℃ |
| HR | 5%-95% no condensation |
| Installation | Desktop or Wall mounted |
| Fan | |
| Fan | Fanless |
| Physical Characteristics | |
| Dimension | 134mm*125mm*43mm |
| Case | All Aluminium Frame; All Aluminium Case for Cooling |
| Color | Black/White |
